Connection Agent

Connection Agent allows your Octopus Cloud instance to connect to privately hosted internal applications such as Git repositories, package feeds, and SMTP servers without requiring inbound firewall rules or a VPN.

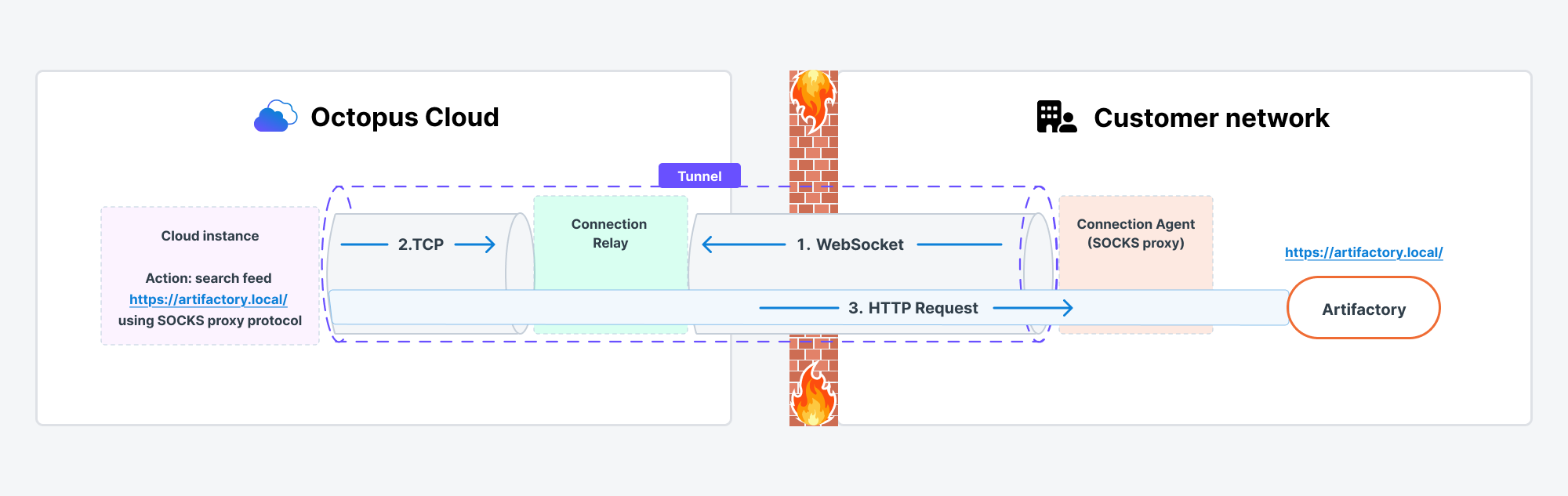

A Connection Agent is a container image you deploy within your private network. It establishes outbound WebSocket connections to your Octopus Cloud instance and acts as a proxy, forwarding traffic between Octopus Cloud and your internal applications.

Supported applications

In the current release, Connection Agent supports the following application types:

• Git repositories (e.g. GitHub Enterprise, Bitbucket)
• SMTP servers
• External feeds:
  • Artifactory Generic Feed
  • Azure Container Registry
  • Docker Container Registry
  • GitHub Repository Feed
  • Helm Feed
  • Maven Feed
  • NPM Feed
  • NuGet Feed
  • OCI Container Registry

How to access this feature

Connection Agent is currently in Public Preview, available to all customers.

If you would like to access this feature, please reach out to . By default, you can register up to 5 Connection Agents per instance. If you need more, contact our support team to discuss your requirements.

Prerequisites

Before registering a Connection Agent, ensure your Octopus Cloud has Connection Agents enabled. If not, please contact our support team.

1. Connection Agent Registration

Only users with ConfigureServer permission (e.g. belonging to Octopus Managers Team) on your Octopus Cloud instance can register new Connection Agents. Please ensure you are a member of this team or a team with ConfigureServer permission before proceeding.

1. Decide on a meaningful Agent Name that will assist in identifying where the Connection Agent is deployed. This will be used by Octopus to determine which Connection Agent the configured applications will be routed to. Agent Names can be up to 200 characters and may include alphanumeric characters, hyphens (-), and periods (.).

2. Decide on a meaningful Key Name that will assist in identifying the private key credential the Connection Agent will use for authentication. Key Names can be up to 200 characters and may include alphanumeric characters, hyphens (-), and periods (.).

3. Generate an RSA key pair to be used to authenticate the Connection Agent. Ensure a minimum key size of 2048.

   Run the following command, substituting in the desired Agent Name:

   AGENT_NAME=<Agent Name>
   openssl genrsa -out ConnectionAgent-$AGENT_NAME.pem 2048
   openssl rsa -in ConnectionAgent-$AGENT_NAME.pem -outform PEM -pubout -out ConnectionAgent-$AGENT_NAME.pem.pub

   IMPORTANT - Protect your Private Key: The generated .pem file is your private key and must be kept secret. It allows Connection Agent to authenticate and proxy requests from Octopus Cloud. If the private key is compromised, immediately rotate your private key.

4. Create an API key with a short expiry date on your Octopus Cloud instance. This API key will only be used to register the Connection Agent.

5. Register the Connection Agent with your Octopus Cloud instance.

   Note that this command does not need to be run on the same infrastructure you intend to run the Connection Agent.

   Run the following command, substituting the values:

   • CONNECT_URL - This will be in the format wss://<dns-prefix>.octopus.app/connect where <dns-prefix> is the hostname of your Cloud Instance
   • API_KEY - The API key created above

   CONNECT_URL=<Connect URL>
   OCTOPUS_API_KEY=<API Key>
   KEY_NAME=<Key Name>
   PUBLIC_KEY=$(cat ConnectionAgent-$AGENT_NAME.pem.pub)

   docker run --rm \
       octopusdeploy/connection-agent \
       register --connect-url $CONNECT_URL --octopus-cloud-instance-api-key $OCTOPUS_API_KEY --agent-name $AGENT_NAME --key-name $KEY_NAME --public-key "$PUBLIC_KEY"

   Note down the returned values, you will need to apply them as environment variables when the Connection Agent is deployed:

   • AUTH_SERVER_DOMAIN
   • AUTH_SERVER_CLIENT_ID
   • API_AUDIENCE
   • CONNECT_URL

6. Configure forwarding rules to map fully qualified domain names (FQDNs) for the applications that are to be accessed via the Connection Agent. Note that this command does not need to be run on the same infrastructure you intend to run the Connection Agent.

   Run the following command, substituting the values:

   • FQDN - The fully qualified domain name of the application (e.g. nuget.internal.example.com)

   FQDN=<FQDN>

   docker run --rm \
   octopusdeploy/connection-agent \
   add-fqdn --connect-url $CONNECT_URL --octopus-cloud-instance-api-key $OCTOPUS_API_KEY --agent-name $AGENT_NAME --fqdn $FQDN

   For each application hosted over HTTPS with either an internal CA issued or self-signed certificate, add the --ignore-certificate-validation-errors option.

2. Connection Agent Deployment

Deploy the octopusdeploy/connection-agent container into your desired private network, specifying the following environment variables returned when the Connection Agent was registered:

• AUTH_SERVER_DOMAIN
• AUTH_SERVER_CLIENT_ID
• API_AUDIENCE
• CONNECT_URL

Additionally, specify your private key (the PEM-encoded Private Key generated previously) as either the environment variable AUTH_SERVER_PRIVATE_KEY_PEM, or as the path to your private key as AUTH_SERVER_PRIVATE_KEY_PEM_PATH.

Running the Connection Agent in Docker

For example, you can use the following approach to quickly test the Connection Agent using Docker:

AGENT_NAME=<Agent Name>
PRIVATE_KEY_PATH=ConnectionAgent-$AGENT_NAME.pem

docker run --interactive --rm \
--name ConnectionAgent  \
--env 'AUTH_SERVER_DOMAIN=m2m.auth.octopus.com' \
--env 'AUTH_SERVER_CLIENT_ID=<PROVIDED_CLIENT_ID>' \
--env "AUTH_SERVER_PRIVATE_KEY_PEM=$(cat $PRIVATE_KEY_PATH)" \
--env 'API_AUDIENCE=<PROVIDED_API_AUDIENCE>' \
--env 'CONNECT_URL=wss://<HOST_OF_YOUR_INSTANCE>/connect' \
'octopusdeploy/connection-agent' \
run

Running the Connection Agent in Kubernetes

To deploy the Connection Agent in Kubernetes, here is an example Deployment YAML:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: connection-agent
  namespace: connection-agent
spec:
  selector:
    matchLabels:
      app: connection-agent
  template:
    metadata:
      labels:
        app: connection-agent
    spec:
      containers:
        - name: connection-agent
          image: octopusdeploy/connection-agent
          args:
            - run
          env:
            - name: AUTH_SERVER_DOMAIN
              value: "m2m.auth.octopus.com"
            - name: CONNECT_URL
              value: "wss://<HOST_OF_YOUR_INSTANCE>/connect"
            - name: AUTH_SERVER_CLIENT_ID
              value: <PROVIDED_CLIENT_ID>
            - name: API_AUDIENCE
              value: <PROVIDED_API_AUDIENCE>
            - name: AUTH_SERVER_PRIVATE_KEY_PEM
              valueFrom:
                secretKeyRef:
                  name: connection-agent-secret
                  key: AUTH_SERVER_PRIVATE_KEY_PEM

3. Connection Agent Management

The Connection Agent Docker image can be run as a CLI:

docker run --rm octopusdeploy/connection-agent --help

The following commands are available:

For full flag listings, append --help to any command.

Rotate the agent’s key

To rotate Connection Agent’s private key, add a new key first, then remove the old one. This avoids downtime as the agent can authenticate with either while the rotation happens.

# 1. Generate a new key pair
openssl genrsa -out ConnectionAgent-$AGENT_NAME.pem 2048
openssl rsa -in ConnectionAgent-$AGENT_NAME.pem -outform PEM -pubout -out ConnectionAgent-$AGENT_NAME.pem.pub

# 2. Authorize the new public key
docker run --rm \
octopusdeploy/connection-agent \
add-key --connect-url $CONNECT_URL --octopus-cloud-instance-api-key $OCTOPUS_API_KEY --agent-name $AGENT_NAME --key-name $KEY_NAME --public-key "$(cat ConnectionAgent-$AGENT_NAME.pem.pub)"

# 3. Restart the agent pointing at the new private key and verify it's connected

# 4. List keys to confirm both are present
docker run --rm \
octopusdeploy/connection-agent \
list-keys --connect-url $CONNECT_URL --octopus-cloud-instance-api-key $OCTOPUS_API_KEY --agent-name $AGENT_NAME

# 5. Remove the old key
docker run --rm \
octopusdeploy/connection-agent \
remove-key --connect-url $CONNECT_URL --octopus-cloud-instance-api-key $OCTOPUS_API_KEY --agent-name $AGENT_NAME --key-name $OLD_KEY_NAME
